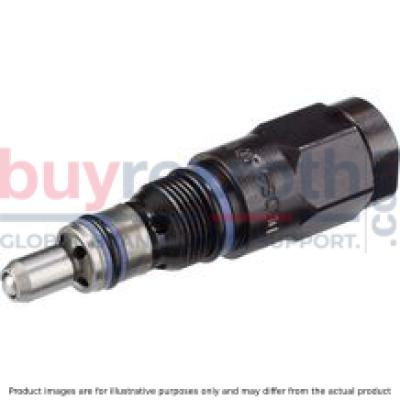

PRESSURE RELIEF VALVE DBDS 4 K1X/100-090

Manufacturer: Bosch Rexroth

Material #: R901063480

Model : DBDS 4 K1X/100-090

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DBDS 4 K1X/100-090 (R901063480) is a high-quality screw-in cartridge valve designed for efficient pressure regulation within hydraulic systems. This direct-operated pressure relief valve is part of the DBD.K product family and is specifically crafted to maintain system pressure within safe operating limits. It features an adjustment option via a grub screw with an internal hexagon, allowing for precise control over the system's pressure settings. This model operates with a maximum flow of 100 l/min and can withstand a maximum operating pressure of 350 bar (5075 psi), ensuring robust performance under demanding conditions. The valve's cavity is designed according to the Mx standard, and it utilizes NBR sealing material to maintain integrity and prevent leaks under various operational circumstances. The DBDS 4 K1X/100-090 employs a poppet-type spool that responds directly to changes in hydraulic pressure, opening when the pressure exceeds the set value to allow excess fluid to flow from the main port P to T, thereby relieving the system of undue stress. This ensures equipment safety and longevity by preventing overpressure scenarios. With its compact size and series X component designation, this relief valve integrates seamlessly into block designs, contributing to streamlined system architecture without compromising on performance or reliability. It is suitable for use with hydraulic fluids HL and HLP, broadening its compatibility across different hydraulic applications. Overall, the Bosch Rexroth DBDS 4 K1X/100-090 stands out as a reliable component for fluid power systems requiring precise pressure control, offering durability and consistent operation even in rigorous industrial environments.

$828.58 USD

More are expected on October 10, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as October 10, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

PRESSURE RELIEF VALVE DBDS 4 K1X/100-090

Unpacked Weight: 0.06 kg

Cartridge valve 8 pressure ratings 2 adjustment types, optionally:
• Grub screw with internal hexagon
• Hand wheel

The pressure valve type DBD..K.. is a direct operated pressure relief valve for installation in block designs. It is used to limit a system pressure. The system pressure can be set via the adjustment type (5).

In the initial position the valve is closed. Via control line (1) and poppet (2), the pressure in the main port ➀ acts on the spring plate (3). If the pressure in the main port ① rises above the value set at the compression spring (4), the poppet (2) opens and the hydraulic fluid flows into the main port ➁.

Type DBDS 4 K1X/.V

➀ = Main port 1 (P)

➁ = Main port 2 (T)

Screw-in cartridge valve
Maximum operating pressure 500 bar (7250 psi)
Maximum flow 20 l/min (5 gpm)
Cavity M14x1

Max. pressure	500
Adjustment options	Grub screw with internal hexagon
Product family classification	Pressure relief valve, direct operated
Productgroup ID	9,10,11,12,13,14
Product family type	DBD.K
Ports number	2
Sealing material	NBR
Cavity	M14x1
Product type	DBD.K
Max. flow	20
Type of connection	Screw-in cartridge valve
Nominal flow	20
Direct - Pilot	Direct acting
Product family	Relief
Spool Poppet	Poppet type
Weight	0.06
Hydraulic fluid	HL,HLP

01	02	03	04	05		06	07	08	09
DBD		4	K	1X	/		V		*

01	Pressure relief valve, direct controlled	DBD
Adjustment type
02	Grub screw with internal hexagon	S
02	Hand wheel	H
03	Size 4	4
04	Cartridge valve	K
05	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)	1X
Pressure rating
06	Set pressure up to 25 bar	25
	Set pressure up to 50 bar	50
	Set pressure up to 100 bar	100
	Set pressure up to 200 bar	200
	Set pressure up to 315 bar	315
	Set pressure up to 350 bar	350
	Set pressure up to 420 bar	420
	Set pressure up to 500 bar	500
Seal material
07	FKM seals	V
07	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Type-examination procedure
08	Without type-examination procedure	no code
08	Type-examination tested safety valve according to Pressure Equipment Directive 2014/68/EU	E
09	Further details in the plain text

Type-examination tested safety valves type DBD

(Component series 1X according to the Pressure Equipment Directive 2014/68/EU)

NG	Designation	Component marking	Maximum flow in l/min	Set response pressure in bar
4	DBDS 4 K1X/ ▢ E	TÜV.SV.- ■ -1038.4.F.G.p	10	60 … 315
4	DBDH 4 K1X/ ▢ E	TÜV.SV.- ■ -1038.4.F.G.p	17	320 … 500

general

Size		4
Weight (approx.)	kg	0.3
Installation position		any
Ambient temperature range	°C	-20 … +80

hydraulic

Size			4
Maximum operating pressure	Inlet	bar	500
Maximum operating pressure	Outlet 1)	bar	315
Maximum set pressure		bar	25 50 100 200 315 350 420 500
Maximum flow		l/min	20
Hydraulic fluid			see table
Hydraulic fluid temperature range		°C	-20 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 2)			Class 20/18/15 according to ISO 4406 (c)

1)	50 bar with set pressure 500 bar
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG	FKM	ISO 15380	90221
		HEES	FKM
	Soluble in water	HEPG	FKM	ISO 15380
Important notes on hydraulic fluids: For more information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum solenoid surface temperature. Bio-degradable and flame-resistant: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system.

Notice:

Hydraulic counter pressures in port T add 1:1 to the response pressure of the valve set at the adjustment type.

Example:

Pressure adjustment of the valve due to spring pretensioning (see "Product description" item 2) pspring = 200 bar Hydraulic counter pressure in port T: phydraulic = 50 bar ⇒ Response pressure = pspring + phydraulic = 250 bar

Deviating technical data: Type-examination tested safety valves type DBD

(Component series 1X, according to Pressure Equipment Directive 2014/68/EU)

general

Ambient temperature range		-10 … +60 °C

hydraulic

Set response pressure		see last figure of the component marking
Maximum counter pressure in the discharge line		See characteristic curves "Counter pressure in the discharge line”
Maximum flow		The last but one figure of the component marking attached at the safety valve is always binding. For valve types which have a variable maximum flow depending on the response pressure, the discharge coefficient is specified at this place.
Hydraulic fluid		Hydraulic fluids according to DIN 51524: Hydraulic oils HL and HLP are suitable for safety valves with FKM seals.
Hydraulic fluid temperature range	°C	-10 … +60
Viscosity range	mm²/s	12 … 230

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

pE-qV characteristic curve

Δp-qv characteristic curve

Notes:

The characteristic curves apply to output pressure = zero in the entire volume flow range and were measured without housing resistance.

Counter pressure in the discharge line

Basically, the valve should be operated without counter pressure in the discharge line, if possible. With counter pressure in the discharge line, the maximum flow possible is reduced. There is a relation between the maximum counter pressure pT in the discharge line and flow qV, which can be seen from the following characteristic curves. Characteristic curves for intermediate values of the response pressure which are not listed must be determined by means of interpolation.

With a flow approaching zero, the maximum counter pressure pT is in each case 10 % of the response pressure. With increasing flow, the maximum counter pressure pT is reduced.

Interpolation of intermediate values from the diagram

At the axis pT , mark 1/10 of the value of pA . Determine the next lower and the next higher characteristic curve for this point. The point marked at pT divides the section between lower and higher characteristic curve on the pTaxis with a certain percentage. At the qVmax axis, divide the section between next lower and next higher characteristic curve in the same percentage as the section at the pT axis. From the zero position flow on the qVmax axis determined in that way, draw a straight line to the value on the pT axis marked before. Mark the system flow to be secured at the qVmax axis. Read off the maximum counter pressure for this value using the line at the pT axis drawn before.

Determination of the maximum counter pressure

Example (with already existing characteristic curve):

Flow of the system / accumulator to be secured: qVmax = 5 l/min Safety valve set to: pA = 500 bar. Read off the maximum counter pressure pT of approx. 36 bar from the diagram (see arrows, characteristic curve 7).

Diagram for determining the maximum counter pressure pT in the discharge line at port T of the valve dependent on the flow qVmax for valves type DBD... with different response pressures pA.Intermediate values may be determined by means of interpolation. Regarding the procedure for interpolation refer to "Interpolation of intermediate values from the diagram".

pA	Response pressure in bar
pT	Maximum counter pressure in the discharge line (port T) in bar
qV max	Maximum flow in l/min

Dimensions in mm

1.1	Adjustment type “S”, internal hexagon SW5
1.2	Adjustment type “H”, hand wheel
2	Lock nut SW17, tightening torque MA = 10+5 Nm
3	Hexagon SW17, tightening torque during screw-in MA = 23±2 Nm
4	embossed type designation
➀	Main port 1 (P)
➁	Main port 2 (T)

Mounting cavity R/DBD: . 4K; 2 main ports; thread M14 x 1

Dimensions in mm

1)	Depth for moving parts
2)	All seal ring insertion faces are rounded and free of burrs
3)	With countersink
4)	Visual inspection
➀	Main port 1 (P)
➁	Main port 2 (T), can optionally be arranged at the circumference
LS	Location shoulder
Tolerance for all angles ± 0.5 °

Type-examination tested safety valves type DBD

(Component series 1X according to the Pressure Equipment Directive 2014/68/EU)

The functionality of these valves corresponds to that of the standard series (see "Product description"). Valves of type DBD..1X/..E are, however, type-examination tested pressure relief valves according to the Pressure Equipment Directive 2014/68/EU and intended for use as safety valves.

At the factory, the response pressure is set to a fixed maximum value using the adjustment type. Afterwards, the

safety valve is sealed.

The safety valves are available with graded response pressures (in 5 bar steps). With valve versions equipped

with rotary knob or hand wheel, the valve spring can be unloaded by the user and a response pressure lower than the factory setting can be set without the need of removing the lead seal.

Safety instructions

Before ordering a type-examination tested safety valve, it must be observed that for the desired response pressure p, the maximum admissible flowqVmax of the safety valve must be larger than the maximum possible flow of the system/accumulator to be secured. According to the Pressure Equipment Directive 2014/68/EU, the increase in the system pressure due to the flow must not exceed 10 % of the set response pressure (see component marking - ordering code, type-examination tested safety valves). The maximum admissible flow qVmax stated in the component marking must not be exceeded. Discharge lines of safety valves must end in a risk-free manner. The accumulation of fluids in the discharge system must not be possible (see data sheet AD2000 A2).

It is imperative to observe the application notes!

In the plant, the response pressure specified in the component marking is set at a flow of 1 l/min. The maximum flow stated in the component marking applies for applications without counter pressure in the discharge line (port T). By removing the lead seal at the safety valve, the approval according to the Pressure Equipment Directive becomes void! Basically, the requirements of the Pressure Equipment Directive and of data sheet AD2000 A2 have to be observed! It is recommended to secure type-examination tested safety valves against inadmissible disassembly by means of wiring and sealing with the housing/block (bore available in the adjustment type).

Notice:

The system pressure increases by the counter pressure in the discharge line (port T) due to the increasing flow. (Observe the data sheet AD 2000 A 2, point 6.3!)

To ensure that this increase in system pressure caused by the flow does not exceed the value of 10% of the set response pressure, the admissible flow has to be reduced dependent on the counter pressure in the discharge line (port T) (see diagrams - Safety instructions, Type-examination tested safety valves).
