HOUSING MGD

Manufacturer: Bosch Rexroth

Material #: R150670051

Model : HOUSING MGD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth HOUSING (R150670051) is a robust and precision-engineered steel nut housing designed to be used with a range of Rexroth ball screw assemblies, specifically for FEMEB, FDMEB, SEMEC, and FEDEB nuts. This product falls under the product group ID of Size E and is characterized by its specific hole pattern BB and Size L dimensions. The HOUSING MGD model code signifies its compatibility with the aforementioned nut types and indicates that it has been crafted to meet the exacting standards required for optimal performance in conjunction with these components. This nut housing is an essential accessory for ensuring the stability and alignment of ball screw assemblies within various applications. Its construction from high-quality steel ensures durability and longevity, making it suitable for use in environments where reliability is paramount. The nominal size designation of this product corresponds to the size of nuts it can accommodate, ensuring a precise fit and seamless integration into existing systems. The Bosch Rexroth HOUSING MGD is specifically tailored to support the mechanical demands imposed by linear motion technologies. It plays a critical role in maintaining the integrity of ball screw assemblies by providing a secure enclosure for the nut component, which translates rotational motion into linear motion. This capability is vital across numerous applications where precision linear movement is required. Overall, this nut housing exemplifies Bosch Rexroth's commitment to producing high-quality components that enhance the functionality and performance of complex mechanical systems. Its specialized design ensures that it meets the needs of users looking for reliable accessories to complement their Rexroth ball screw assemblies.

$493.74 USD

More are expected on June 20, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as June 20, 2024 when ordered in

HOUSING MGD

Housing MGD 80x40

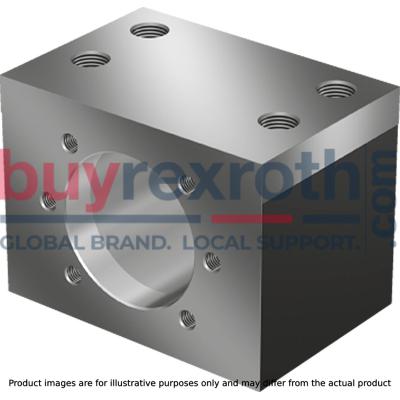

Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts, size 80x40

Unpacked Weight: 10.387 kg

Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Size A	100
Productgroup ID	17
Size E1	160
Size D1 h7	125
Size N	37
Size H	73
Size E2	46
Size D6	145
Size S	17
Hole pattern	BB1
Size T1	30
Size T2	22
Size L	125
Accessories for screw drives	Nut housing
Size B	95
Weight	10.387
Size H1	146
Nominal size	80x40

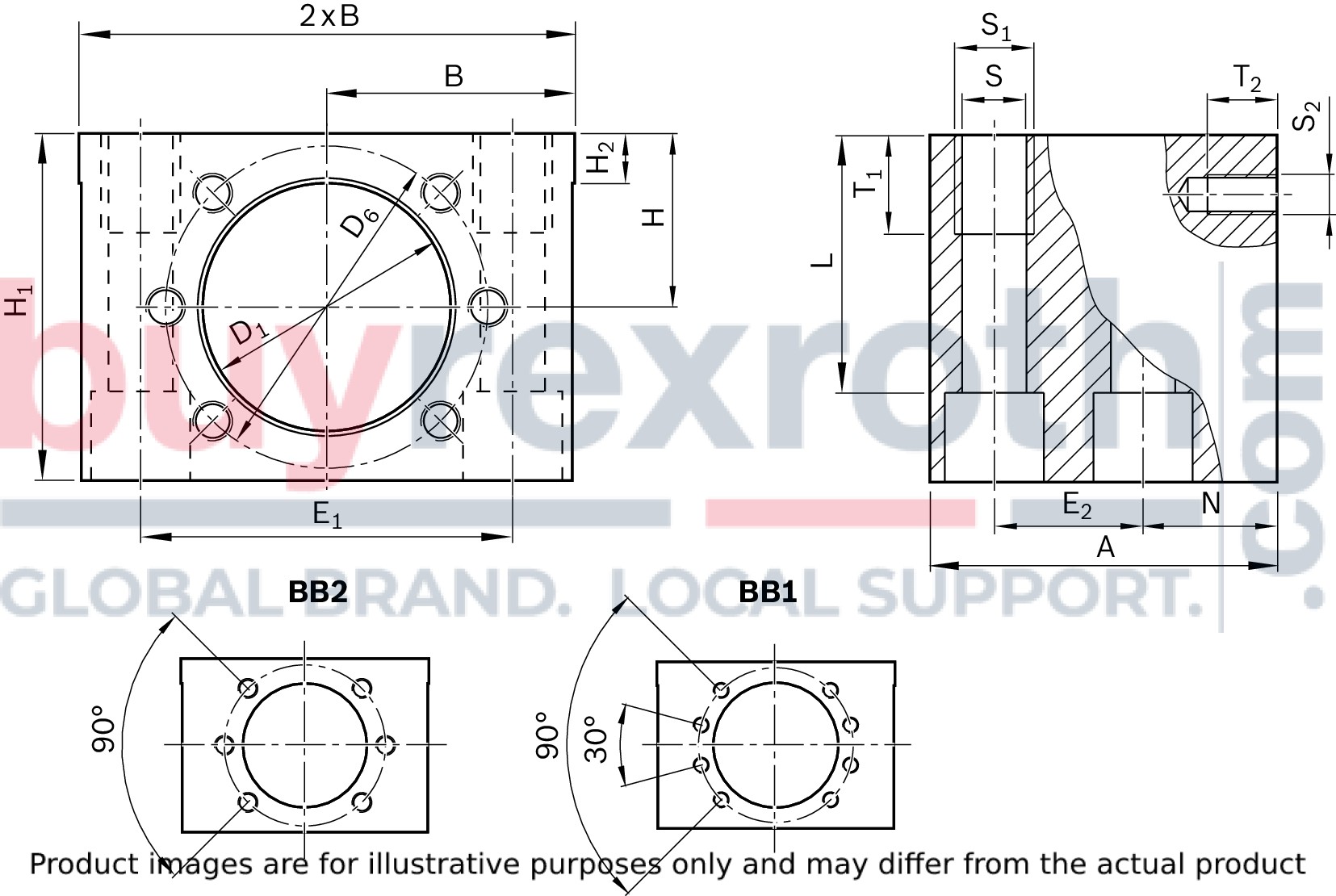

Technical data and dimensions

Size	Mass	Hole pattern	Hex socket cap screw	A	B	D1	D6	E1	E2	H	H1	H2	N	S	S1	T1	S2	T2	Clamping length
d0 x P x Dw	Mass	Hole pattern	ISO 4762	A	B	H7	D6	E1	E2	H	H1	H2	N	S	S1	T1	S2	T2	L
	kg			mm		mm	mm				mm	mm	mm	mm		mm		mm	mm
16 x 5R/L x 3 16 x 10R x 3 16 x 16R x 3	0.91	BB2	M8	50	35 mm ±0.01	28	38	50 mm ±0.1	20 mm ±0.1	24 mm ±0.01	48	10	20	8.4	M10	15	M5	10	37
20 x 5R/L x 3 20 x 10R x 3 20 x 20R x 3,5	1.18			55	37.5 mm ±0.01	36	47	55 mm ±0.1	23 mm ±0.1	28 mm ±0.01	56		22				M6	11	45
25 x 5R/L x 3 25 x 10R x 3 25 x 25R x 3,5	1.33			55	40 mm ±0.01	40	51	60 mm ±0.1	23 mm ±0.1	30 mm ±0.01	60		22				M6	11	49
32 x 5R/L x 3,5 32 x 10R x 3,969 32 x 20R x 3,969 32 x 32R x 3,969	2.27		M12	70	50 mm ±0.01	50	65	75 mm ±0.1	30 mm ±0.1	35 mm ±0.01	70		27	13	M16	20	M8	14	52
40 x 5R/L x 3,5 40 x 10R/L x 6 40 x 12R x 6 40 x 16R x 6 40 x 20R x 6 40 x 25R x 6 40 x 30R x 6 40 x 40R x 6	3.61	BB1	M14	80	60 mm ±0.01	63	78	90 mm ±0.1	35 mm ±0.1	42 mm ±0.01	84	12	31	15	M18	25	M8	17	65.5
50 x 5R x 3,5 50 x 10R x 6 50 x 12R x 6 50 x 16R x 6 50 x 20R x 6,5 50 x 25R x 6,5 50 x 30R x 6,5 50 x 40R x 6,5	5.63		M16	95	70 mm ±0.01	75	93	110 mm ±0.15	45 mm ±0.15	48 mm ±0.01	96	12	34	17	M20	30	M10	17	75
63 x 10R x 6	6.72			100	75 mm ±0.01	90	108	120 mm ±0.2	46 mm ±0.15	55 mm ±0.01	110	15	37				M10	20	89
63 x 20R x 6,5 63 x 40R x 6,5	7.67				80 mm ±0.01	95	115	130 mm ±0.2		58 mm ±0.01	116						M12		95
80 x 10R x 6,5	8.6				85 mm ±0.01	105	125	140 mm ±0.2		63 mm ±0.01	126								105
80 x 20R x 12,7	10.53				95 mm ±0.01	125	145	160 mm ±0.2		73 mm ±0.01	146							22	125

Legend

Symbol	Description
d0	Nominal diameter
P	Lead
DW	Ball diameter

Attention: If a ball screw assembly with a front lube unit is used, the front lube unit may project beyond the housing. This must be considered when calculating the stroke.

In addition to bolting, the housings should be locked in place by positive means (for example, two pins with a diameter equal to that of the screws).

We recommend using screws with a strength class of 8.8.

Tightening torque

See “Installation” section “Installation in the machine”

Reference edges are formed on both sides.

Required and supplementary documentation

For further instructions and information, please refer to the documentation for this product.

You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.

If you are unsure about using this product, please contact Bosch Rexroth.
