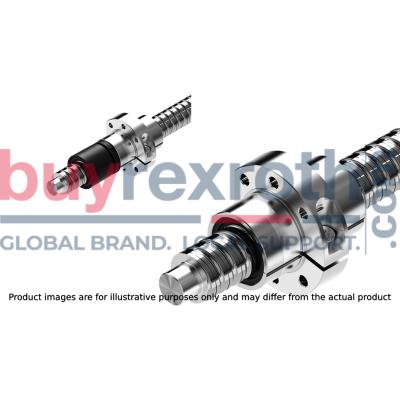

BALL NUT SEM-E-C 63X20RX6,5-5

Manufacturer: Bosch Rexroth

Material #: R151267076

Model : SEM-E-C 63X20RX6,5-5

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth SEM-E-C 63X20RX65-5 (R151267076) is an adjustable preload single nut ball screw assembly designed for precision linear movement applications. This SEMEC nut has a nominal diameter of 63mm and a lead of 20mm, with a right-hand thread direction. It features a flange type C mounting, which aligns with DIN standards, ensuring compatibility with a wide range of equipment designs. The ball screw nut is engineered to provide zero-clearance due to its adjustable preload capability, enhancing system rigidity and reducing axial play for applications requiring high precision. The product is classified under tolerance grade T, which indicates its high level of manufacturing precision for sizes as outlined in the product overview for screws. This model incorporates standard seals to protect against contaminants and employs standard axial clearance for optimal performance. It has been designed to operate within a temperature range of -10°C to +80°C continuously, with temporary peaks up to +100°C permissible without affecting its integrity or performance. The dynamic load capacity C and static load rating C are specified for tolerance grades T3 and T7; however, users should refer to the correction factor f_a_c when operating under different tolerance grades. The SEM-E-C 63X20RX65-5 can achieve maximum permissible linear speeds as dictated by characteristic speed d_n and critical speed n_cr parameters. It boasts a substantial dynamic load capacity and comes with a weight specification that reflects its robust construction while still maintaining efficiency in operation. Overall, this ball screw assembly from Bosch Rexroth is an essential component for systems requiring precise linear motion control, such as in CNC machinery, automation setups, and other advanced mechanical applications where reliability and accuracy are paramount.

$1,227.77 USD

More are expected on July 25, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as July 25, 2024 when ordered in

BALL NUT SEM-E-C 63X20RX6,5-5

Adjustable-preload single nut SEM-E-C, size 63 x 20R x 6.5 - 5

Adjustable-preload single nut SEM-E-C with standard seal and standard axial clearance
Nominal diameter d0 = 63
Lead P = 20 (right)
Ball diameter Dw = 6.5
Number of ball track turns i = 5

Unpacked Weight: 5.320 kg

Product overview

Mounting dimensions similar to DIN 69051, Part 5 flange type C
With seals
Adjustable preload
Tolerance grade: T3 (for sizes as per the product overview for screws, see General Technical Notes and Information "Product description"), T5, T7

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Size D5	135
Size L with tolerance	132 mm
Bearing temperature max	+80
Series	Standard series
Bearing temperature min	-15
Nut or screw	Screw drive nut
Maximum operating temperature	+80
Footnote dynamic load capacity C	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f_ac (see General Technical Notes and Information "Technical Data", Technical Notes).
Bearing temperature	-15 °C ... +80 °C
Category	B
Minimum operating temperature	-10
Size L4	25
Size D6	115
Size D1 f9	95
Size D1 min	94.936
Size L3	30
Size L9	117.5
Size L10	51
Size D1 max	94.964
Operating temperature	-10 °C ... +80 °C
Maximum permissible linear speed vmax (m/min)	48
Direction of lead	Right
Size L8	20
Lead	20
Footnote static load capacity C0	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f_ac (see General Technical Notes and Information "Technical Data", Technical Notes).
Size L5	51
Static load rating C0	190300
Note: Maximum permissible speed vmax	See "Characteristic speed d₀• n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed n_cr" (see General Technical Notes and Information, "Project planning notes")
Nut type	SEM-E-C zero-clearance adjustable single nut
Productgroup ID	17
Screw drive version (drive type)	Ball screw assembly
Size D7	13.5
Hole pattern	BB1
Size Sx	5
Footnote permissible operating temperature (min...max)	Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Dynamic load capacity C	100700
Size d1	61
Size L	132
Size d2	56.4
Footnote operating temperature max.	Ball screw assemblies permit operation at continuous temperatures of up to 80°C with temporary peaks of 100°C, measurements taken on the outer shell of the nut in each case.
Weight	5.320
Nominal size	63 x 20R x 6,5 - 5

Technical data for nuts

Size	C	C0	vmax	Mass
d0 x P x Dw - i	N	N	m/min	kg
16 x 5R x 3 - 4	14800 1)	16100 1)	30 2)	0.2
16 x 10R x 3 - 3	11500 1)	12300 1)	60 2)	0.22
16 x 16R x 3 - 3	11200 1)	12000 1)	96 2)	0.29
20 x 5R x 3 - 4	17200 1)	21500 1)	30 2)	0.33
20 x 20R x 3,5 - 3	16000 1)	18800 1)	120 2)	0.56
25 x 5R x 3 - 4	19100 1)	27200 1)	30 2)	0.43
25 x 10R x 3 - 4	18800 1)	27000 1)	60 2)	0.54
25 x 25R x 3,5 - 3	17600 1)	23300 1)	150 2)	0.77
32 x 5R x 3,5 - 4	25900 1)	40000 1)	23 2)	0.74
32 x 10R x 3,969 - 5	38000 1)	58300 1)	47 2)	0.97
32 x 20R x 3,969 - 3	23600 1)	33700 1)	94 2)	1.04
32 x 32R x 3,969 - 3	23400 1)	34000 1)	150 2)	1.34
40 x 5R x 3,5 - 5	34900 1)	64100 1)	19 2)	1.25
40 x 10R x 6 - 4	60000 1)	86400 1)	38 2)	1.39
40 x 12R x 6 - 4	59900 1)	86200 1)	45 2)	1.47
40 x 20R x 6 - 3	45500 1)	62800 1)	75 2)	1.55
40 x 40R x 6 - 3	44400 1)	62300 1)	150 2)	2.69
50 x 5R x 3,5 - 5	38400 1)	81300 1)	15 2)	1.67
50 x 10R x 6 - 6	95600 1)	166500 1)	30 2)	2.46
50 x 12R x 6 - 6	95500 1)	166400 1)	36 2)	2.69
50 x 20R x 6,5 - 5	90800 1)	149700 1)	60 2)	3.08
50 x 40R x 6,5 - 3	55800 1)	85900 1)	120 2)	3.39
63 x 10R x 6 - 6	106600 1)	214300 1)	24 2)	2.83
63 x 20R x 6,5 - 5	100700 1)	190300 1)	48 2)	4.86
63 x 40R x 6,5 - 3	64100 1)	114100 1)	95 2)	5.36
80 x 10R x 6,5 - 6	130100 1)	291700 1)	19 2)	3.73
80 x 20R x 12,7 - 6	315200 1)	534200 1)	30 2)	13.5

1)	The load ratings are valid for tolerance grades T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
2)	See "characteristic speed d0 • n" (see General Technical Notes and Information "Technical Data" (Technical Notes), and "Critical Speed ncr" (see General Technical Notes and Information, "Project planning notes")

Operating conditions

Size	Admissible operating temperature (min ... max) 1)	Admissible storage temperature (min ... max)
d0 x P x Dw - i	Admissible operating temperature (min ... max) 1)	Admissible storage temperature (min ... max)
16 x 5R x 3 - 4	-10 °C ... +80 °C	-15 °C ... +80 °C
16 x 10R x 3 - 3
16 x 16R x 3 - 3
20 x 5R x 3 - 4
20 x 20R x 3,5 - 3
25 x 5R x 3 - 4
25 x 10R x 3 - 4
25 x 25R x 3,5 - 3
32 x 5R x 3,5 - 4
32 x 10R x 3,969 - 5
32 x 20R x 3,969 - 3
32 x 32R x 3,969 - 3
40 x 5R x 3,5 - 5
40 x 10R x 6 - 4
40 x 12R x 6 - 4
40 x 20R x 6 - 3
40 x 40R x 6 - 3
50 x 5R x 3,5 - 5
50 x 10R x 6 - 6
50 x 12R x 6 - 6
50 x 20R x 6,5 - 5
50 x 40R x 6,5 - 3
63 x 10R x 6 - 6
63 x 20R x 6,5 - 5
63 x 40R x 6,5 - 3
80 x 10R x 6,5 - 6
80 x 20R x 12,7 - 6

1)	Ball screw assemblies are suitable for continuous operation at temperatures up to 80 °C with temporary peaks of 100 °C (measurements taken on the outer shell of the nut).

Legend

Symbol	Description	Unit
d0	Nominal diameter	mm
P	Lead (R = right-hand)
Dw	Ball diameter	mm
i	Number of ball track turns
C	Dynamic load capacity	N
C0	Static load capacity	N
vmax	Maximum permissible speed	m/min

Technical notes

1)	Lube port (lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm)
2)	Nut rework: Axial lube port

Dimensions

Size	D1 min	D1 max	d1	d2	D1	D5	Hole pattern	D6	D7	L	L3	L4	L5	L8	L9	L10	S 1)	Sx
d0 x P x Dw - i	D1 min	D1 max	d1	d2	f9	D5	Hole pattern	D6	D7	L	L3	L4	L5	L8	L9	L10	S 1)	Sx
d0 x P x Dw - i	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
16 x 5R x 3 - 4	27.94	27.975	15	12.9	28	48	BB2	38	5.5	38	15	10	11.5	7.1	44	11.5	M6	4
16 x 10R x 3 - 3	27.94	27.975								45		15	15	11		15
16 x 16R x 3 - 3	27.95	27.978								61		20	23	10		23
20 x 5R x 3 - 4	35.935	35.97	19	16.9	36	58		47	6.6	40		10	12.5	7.1	51	12.5
20 x 20R x 3,5 - 3	35.945	35.973	19	16.7	36	58		47		77	20	25	28.5	12.5	51	28.5
25 x 5R x 3 - 4	39.935	39.97	24	21.9	40	62		51		45		10	12.5	9.5	55	12.5
25 x 10R x 3 - 4	39.935	39.97		21.9						64		16	22	10		22
25 x 25R x 3,5 - 3	39.945	39.973		21.4						95	25	30	35	14		35
32 x 5R x 3,5 - 4	49.935	49.97	31	28.4	50	80		65	9	48	20	10	14	9.7	71	14
32 x 10R x 3,969 - 5	49.935	49.97		27.9						77		16	28.5	12.5		28.5
32 x 20R x 3,969 - 3	49.945	49.973								84		25	32			32
32 x 32R x 3,969 - 3	49.945	49.973								120		40	50			50
40 x 5R x 3,5 - 5	62.931	62.966	39	36.4	63	93	BB1	78		54	25	10	14.5	12	81.5	14.5	M8x1	5
40 x 10R x 6 - 4			38	33.8						70		16	22.5	11.8		22.5
40 x 12R x 6 - 4										75		25	25	12.5		25
40 x 20R x 6 - 3	62.941	62.969								88		25	31.5	16.5		31.5
40 x 40R x 6 - 3	62.941	62.969								142	40	45	51	25		51
50 x 5R x 3,5 - 5	74.931	74.966	49	46.4	75	110		93	11	54	25	10	14.5	12	97.5	14.5
50 x 10R x 6 - 6			48	43.8						90	30	16	30	14.1		30
50 x 12R x 6 - 6				43.8						105		25	37.5	15		37.5
50 x 20R x 6,5 - 5	74.941	74.969		43.4						132		25	51	20		51
50 x 40R x 6,5 - 3	74.941	74.969		43.4						149		45	59.5	18		59.5
63 x 10R x 6 - 6	89.926	89.961	61	56.8	90	125		108		90		16	30	14	110	30
63 x 20R x 6,5 - 5	94.936	94.964		56.4	95	135		115	13.5	132		25	51	20	117.5	51
63 x 40R x 6,5 - 3	94.936	94.964		56.4	95	135		115		149		45	59.5	18	117.5	59.5
80 x 10R x 6,5 - 6	104.926	104.961	78	73.3	105	145		125		95		16	32.5	14	127.5	32.5
80 x 20R x 12,7 - 6	124.931	124.959	76	67	125	165		145		170	50	25	60	24	147.5	60

1)	Lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm

Legend

Symbol	Description	Unit
d0	Nominal diameter	mm
P	Lead (R = right-hand)
Dw	Ball diameter	mm
i	Number of ball track turns

Calculation

Installation

Attention: When setting up applications, do not allow components to collide with the front lube unit.

Lubrication

Nut housing MGD

Steel nut housings MGD are designed for FEM-E-C, FDM-E-C, SEM-E-C and FED-E-B nuts

Catalog

Service

CAD data

Directives and standards

Required and supplementary documentation

For further instructions and information, please refer to the documentation for this product.

You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.

If you are unsure about using this product, please contact Bosch Rexroth.
