LINEAR-SET LSAOE-A-20-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

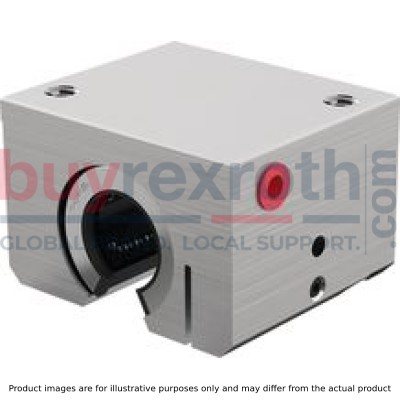

The Bosch Rexroth LINEAR-SET LSAOE-A-20-DD (R103862020) is a high-quality linear motion system designed for precision applications where smooth and accurate movement is required. This linear set features an aluminum housing that is both lightweight and sturdy, ensuring durability while minimizing additional weight to the system it's integrated into. The open, adjustable design allows for easy access and maintenance, making it a versatile choice for various applications. Equipped with super linear bushing A, the LINEAR-SET LSAOE-A-20-DD offers self-alignment capabilities, which enhances its performance by allowing for minor misalignments in mounting without compromising movement accuracy. The inclusion of two external seals provides added protection against contaminants, extending the life of the unit and maintaining its efficiency. With a shaft diameter labeled as size V and an outer diameter designated size H, this linear set ensures compatibility with a range of setups. It also boasts an impressive dynamic load capacity (size H) and static load rating (size M), signifying its ability to handle significant loads while maintaining smooth operation. The unit is capable of maximum acceleration (amax) and can operate within a permissible ambient temperature range from -20°C to 80°C. Its breakaway force (size H) and maximum permissible linear speed (vmax), which can reach up to 5 m/s under specific conditions, indicate its suitability for high-speed applications although service life may be reduced due to increased wear on plastic components. This Bosch Rexroth linear set comes clamped to an h6 shaft lower limit and is set to zero-clearance out of the box, ensuring minimal radial clearance upon installation. For those requiring specific clearance adjustments, an adjusting screw is provided for fine-tuning radial clearance to meet precise application needs. Overall, the LINEAR-SET LSAOE-A-20-DD offers robust construction, precise adjustability, and reliable performance for various industrial motion tasks requiring exacting standards of linearity and repeatability.
