LINEAR-SET LSGF-M-12

Manufacturer: Bosch Rexroth

Material #: R108111200

Model : LINEAR-SET LSGF-M-12

Destination

$92.94 USD

Availability: Backordered

Ships from US

Add to Cart

Qty:
Delivered as early as August 31, 2026

Source From Bosch Rexroth

Unavailable

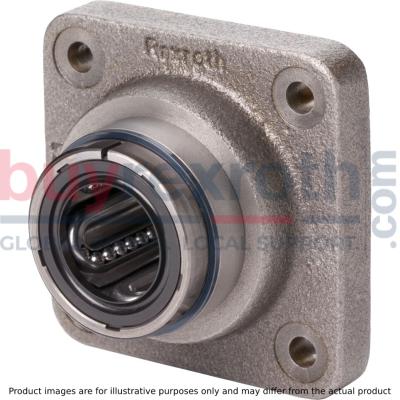

LINEAR-SET LSGF-M-12

Linear set (steel), F-M-12, without seal

Linear set (steel)
Flange
With standard LB (metal)
Shaft diameter d = 12
Without seal
Version: Standard

Unpacked Weight: 0.110 kg

Flanged housing (lamellar graphite cast iron)
Standard linear bushing with wiper seals
Two retaining rings with two additional spacer rings (steel) for shaft diameters 12 to 40
Radial clearance not adjustable

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Shaft diameter d	12
Linear guide type	Linear bushing and shaft
Filter for linear bushings and shafts	Linear sets with linear bushings
Format of linear bushings	F – Flange
Series	Standard (metal)
Dynamic load capacity C	420
Footnote dynamic load capacity C	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Max. acceleration amax	100
Maximum permissible linear speed vmax	2.5
Outer diameter D	22
Static load rating C0	280
Footnote static load capacity C0	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Permissible ambient temperature	-10 °C ... +100 °C
Footnote permissible ambient temperature (min ... max)	for standard linear bushings without wiper seals
Footnote shaft radial clearance h6	“Determined from working bore diameter and shaft tolerance statistics. When factoring in the outer diameter of the linear bushings and the housing bore, an h6 shaft produces similar radial clearance values as specified in the “h6/H7" column under "Radial clearance" for the R0610 standard linear bushing.”
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force	6
Friction force	2
Productgroup ID	17
Permissible ambient temperature (max)	+100
Permissible ambient temperature (min)	-10
Weight	0.110
Size D	22
Size D1	24
Size D1 tolerance	+0.8
Size D2	28
Size E	30
Size B	42
Size L	32
Size L1	12
Size D1 with tolerance	24 mm +0,8
Size V	6
Size W	10
Size S H13	5.5
