R345304016

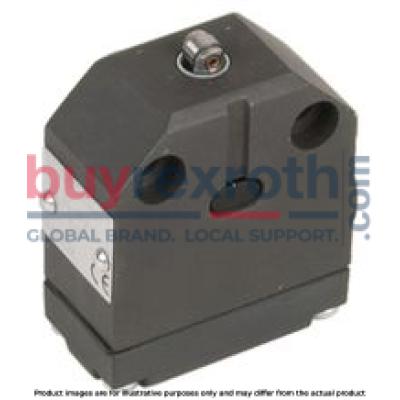

LIMIT SWITCH BNS 819-X496-99-R-11

Manufacturer: Bosch Rexroth

Material #: R345304016

Model : LIMIT SWITCH BNS 819-X496-99-R-11

Destination

$99.88 USD

Availability: Backordered

Ships from US

Add to Cart

Qty:
Delivered as early as August 20, 2026

Source From Bosch Rexroth

Unavailable

LIMIT SWITCH BNS 819-X496-99-R-11

Unpacked Weight: 0.0732 kg

3D CAD	Download 3D CAD
3D CAD	Download 3D CAD

Electrical accessories for linear axes	Mechanical switch
Permissible ambient temperature	-5 °C ... +85 °C
Switching function version	Single-pole changeover/(NC: C+NC, NO: C+NO)
B10d value	5x10⁶ (wet area); 10x10⁶ (dependent on current load (dry area))
Productgroup ID	17
Connection type	Screw connection, without line
Permissible ambient temperature (max)	+85
Compatible	CKK, CKR, MKK/MKR-065/080/110/145/165, MLR-080/110, OBB, SGK, SOK, TKK
Permissible ambient temperature (min)	-5
Switching frequency	3.3
Protection class	IP67
Load current	≤5
Max. permissible approach speed	1
Functional principle	mechanical, roller
Use	Limit switch
Function indicator	no
Weight	0.0732

Technische Daten

Part number		R345304016	R347600305	R117500151	R117500162	R023620301
Functional principle		mechanical, roller
Operating voltage	V AC	250
Load current	A	≤ 5
Switching function		Single-pole changeover/(NC: C+NC, NO: C+NO)
Connection type		Screw connection, without line
Function indication		‒
Switching frequency	Hz	3.3
Maximum permissible starting speed	m/s	1
Permissible ambient temperature (min ... max)		-5 °C ... +85 °C
Protection type		IP67
B10d value		5x106 (wet range); 10x106 (depending on current load (dry area))

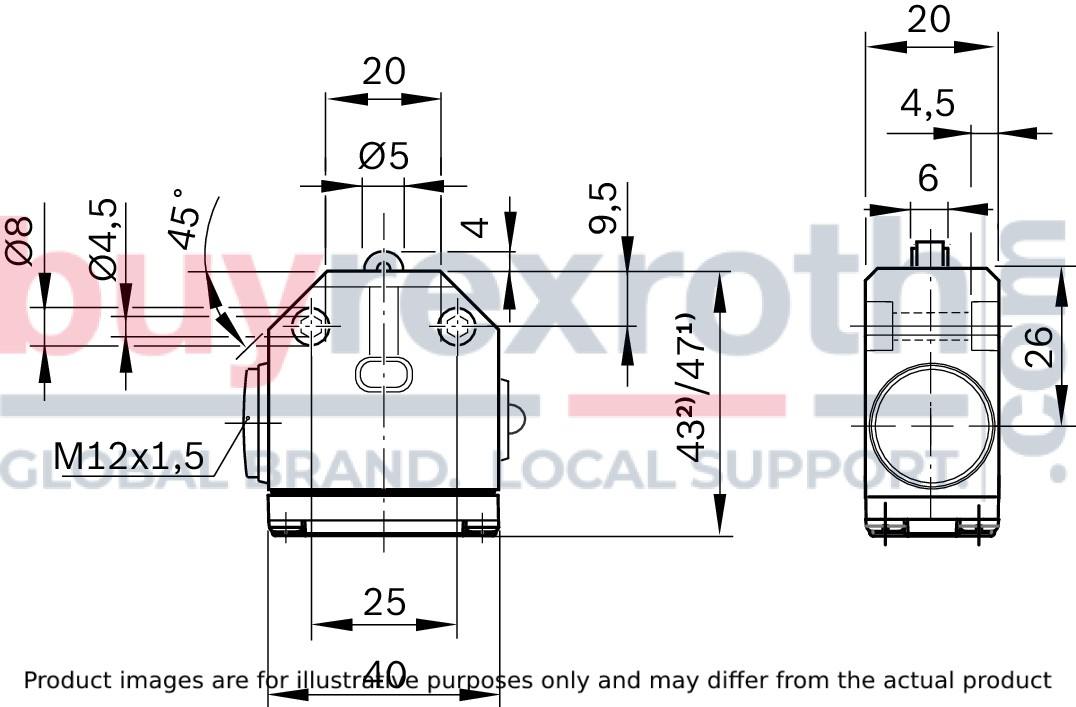

Mechanical switch without additional component

1)	R345304016
2)	R347600305

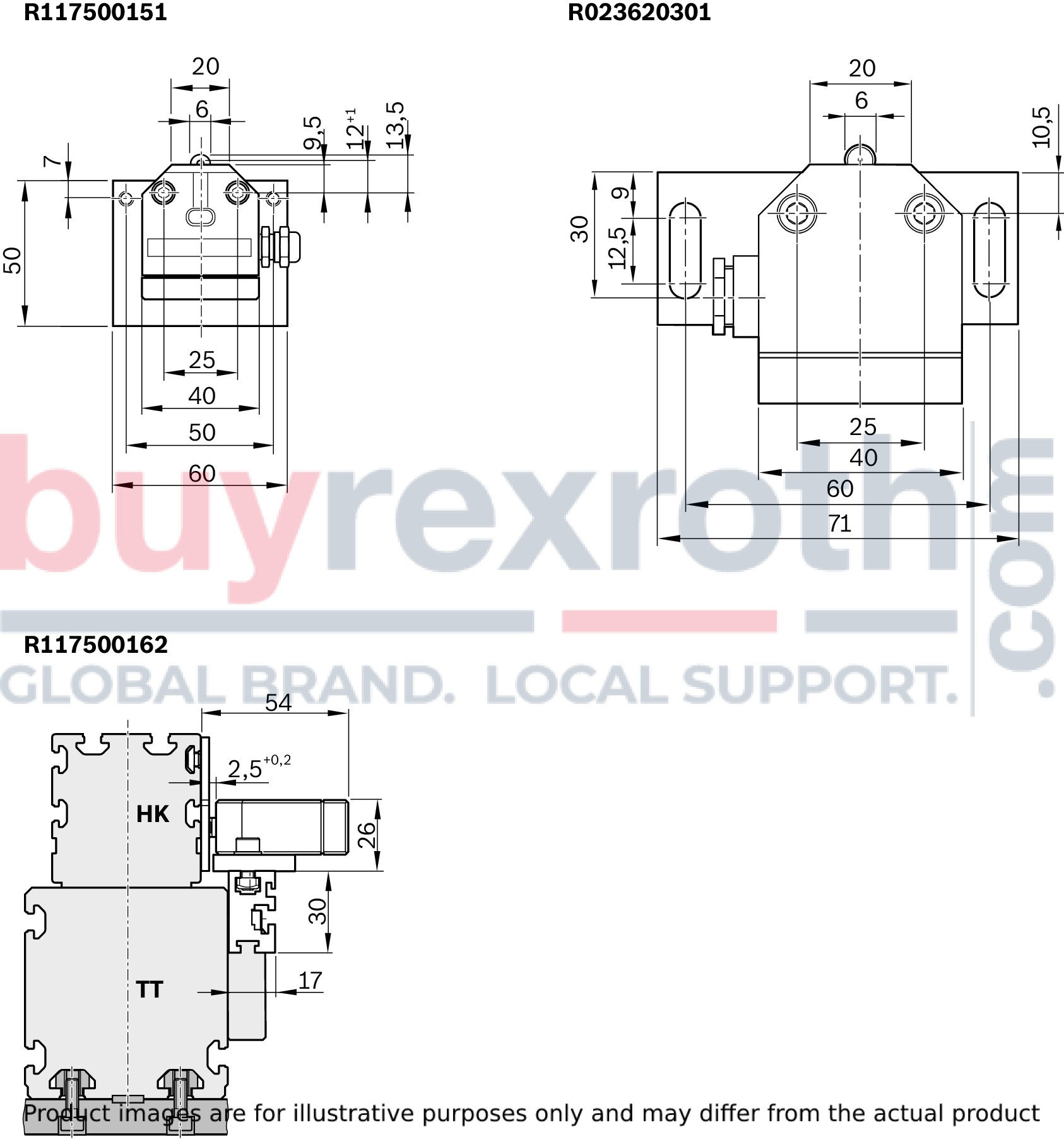

Mechanical switch with additional component

Certifications and approvals, housing
Certifications and approvals, switching element
